VARIATOR MULTIVAR 2000 MHR Next

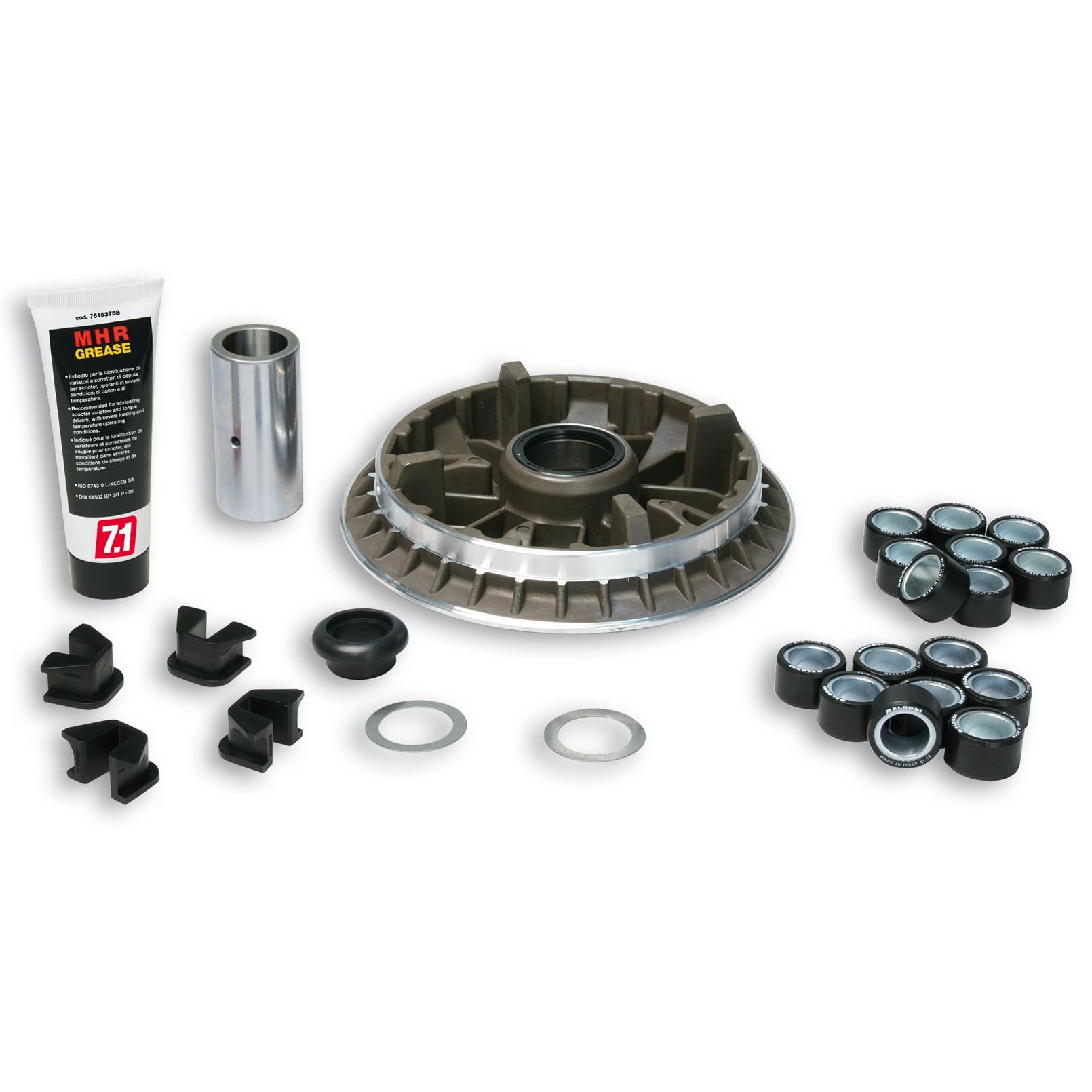

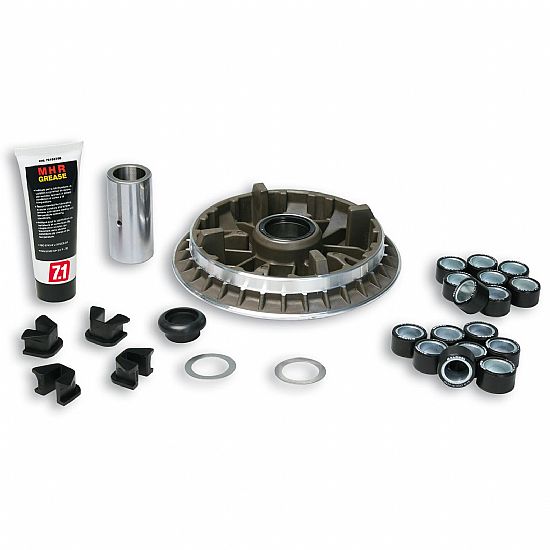

Code Description
1913515E 2 SHIMS O 35x25x0,5
3715200 4 SLIDERS for MULTIVAR 2000
7615375B 7.1 MHR grease tube - lubricating grease gr.40

6613561.E0 8 HTRoll O 25x14,9 gr.16
6613561.G0 8 HTRoll O 25x14,9 gr.18
2613738B CIRCLIP O 22x35x16 moplen
6114856B MOVABLE HALF-PULLEY for MULTIVAR 2000
2313511B MULTIVAR 2000 HUB (O 35x25x72,3 mm)
6617885B OIL SEAL O 35x44x4

Malossi technical staff has worked to further improve one of his must-have products, a point of reference for all T-Max enthusiasts: the legendary MHR Multivar for Yamaha T Max!

The variator has been improved to renew the transmission system as well as to exploit its extraordinary technical features: so we have come out with Multivar MHR Next. This new variator is the evolution of the previous generations, born from the very experience drawn from race tracks and from modern Cad-Cam technology; it allows to achieve the highest performance results.

As you can see from the gear curve, our technicians concentrated on further widening the gear range, especially the short gear, thus achieving more acceleration and pick-up as well as improving consistency in shifting. The number of revolutions instead remains nearly unvaried during the whole shifting.

We have even done better: the clearance between hub and bushing was further reduced and surface roughness minimized, in order to create a really incomparable variator!

Technical specifications

Further widened gear range (especially short gear)
Improved shifting consistency
Hard anodized - black
Modified roller guides to allow greater operational linearity while maintaining maximum power
Case-hardened and ground machined steel sliding bushing
Hardened, ground machined, chromed steel hub- New one-piece rollers with a better performing compound
Supplied with two different roller sets and two shims in order to change the number of revolutions of the gear curve of your vehicle perfectly adjusting its speed and acceleration

NB: For an even better performance we suggest you to combine the variator with the new X K Belt MHR (art. 6114674).

No wonder then if with a variator that features such sophisticated engineering, your scooter suddenly has that extra sprint, a consistency in shifting, a greater mechanical "ease" at high speeds and a constancy in performance you've never experienced before with the original version.

Dekra Certification GmbH certifies that Malossi produces its complete variators and CVT-kits efficiently applying a quality management system, as required by the German and International road circulation law (KBA).

ATTENTION : The grease supplied in the kit must be put in the internal groove both of the hub and of the bush
